Coxreels® SDH Series — SDH Series "Static Discharge" cable reels are built heavy duty and designed for long lasting performance. They are specifically design to be used in combustible environments where the static buildup could ignite a spark and subsequent explosion.

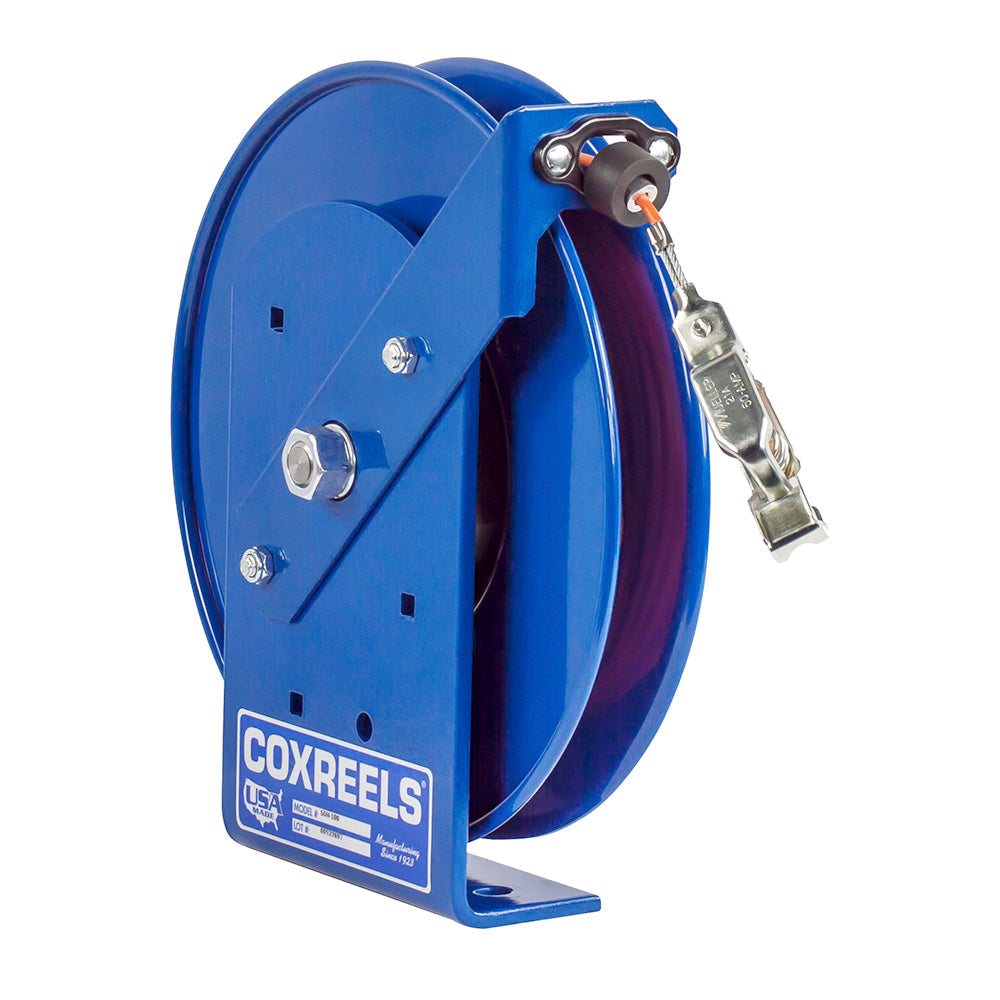

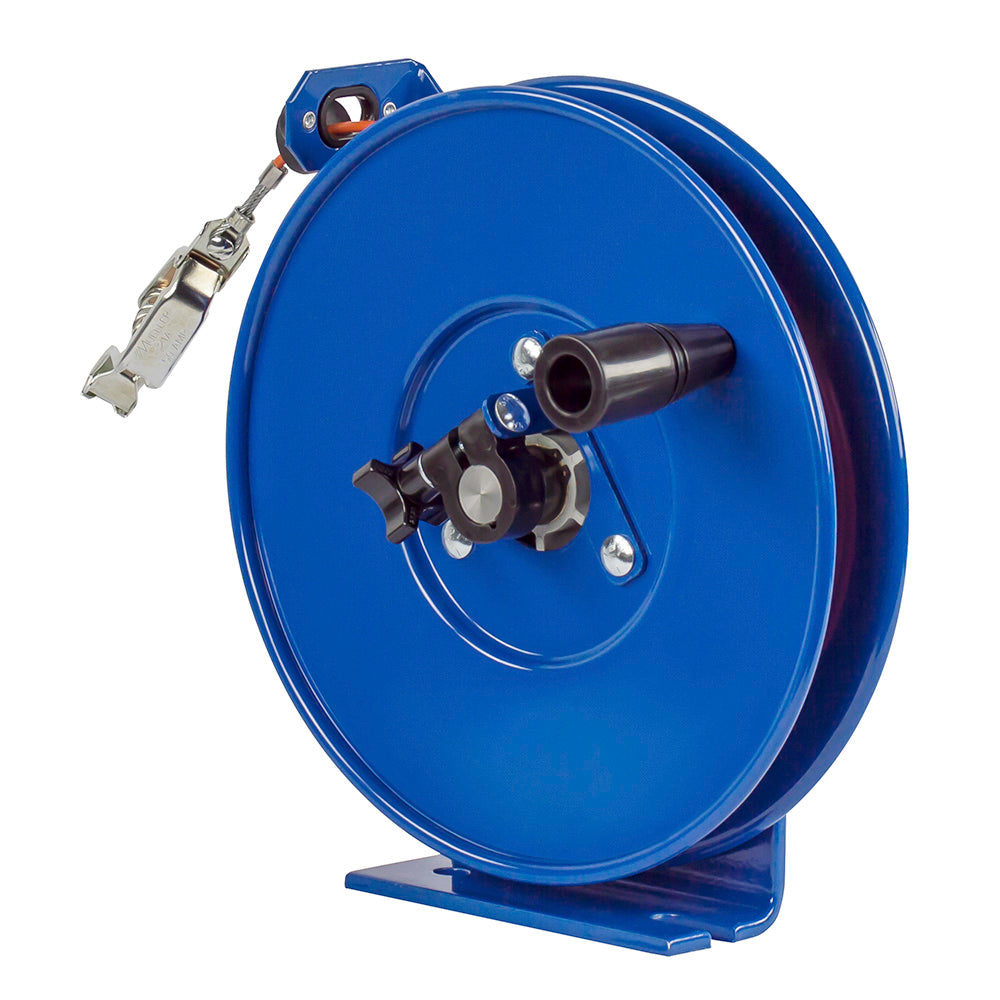

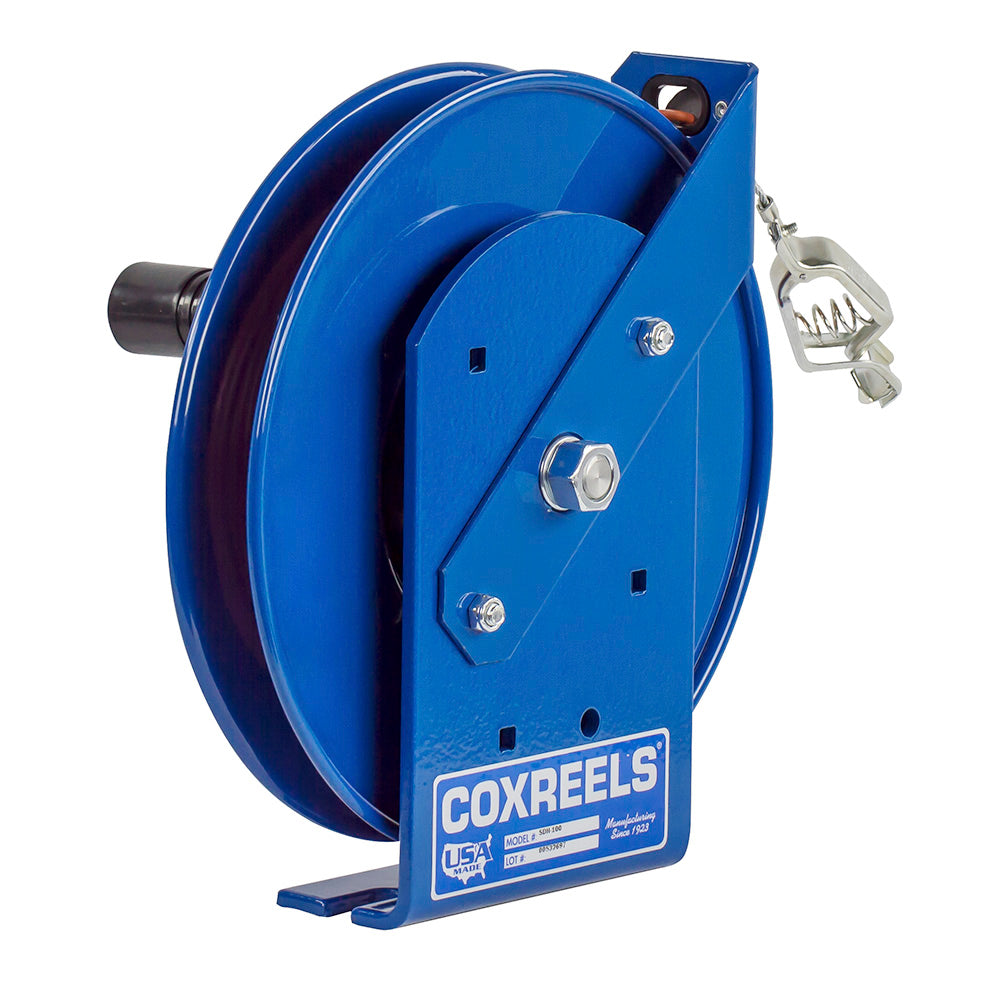

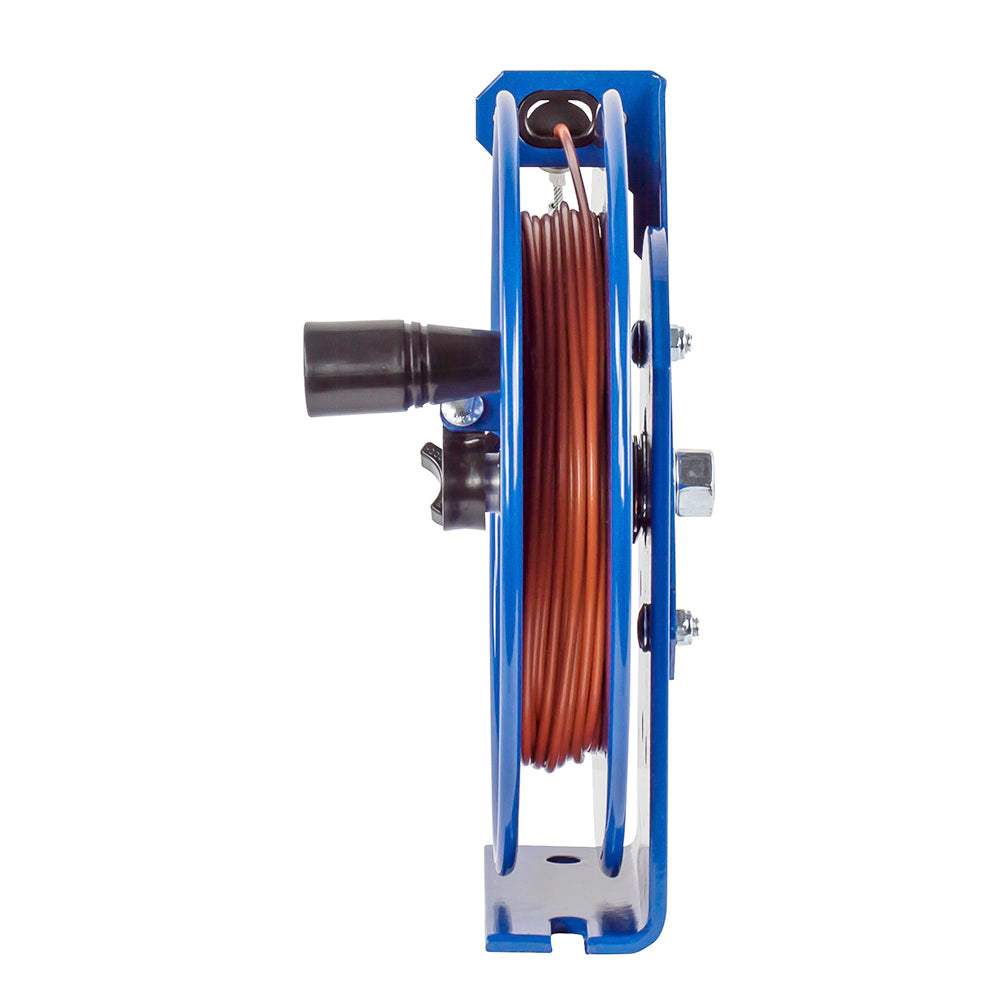

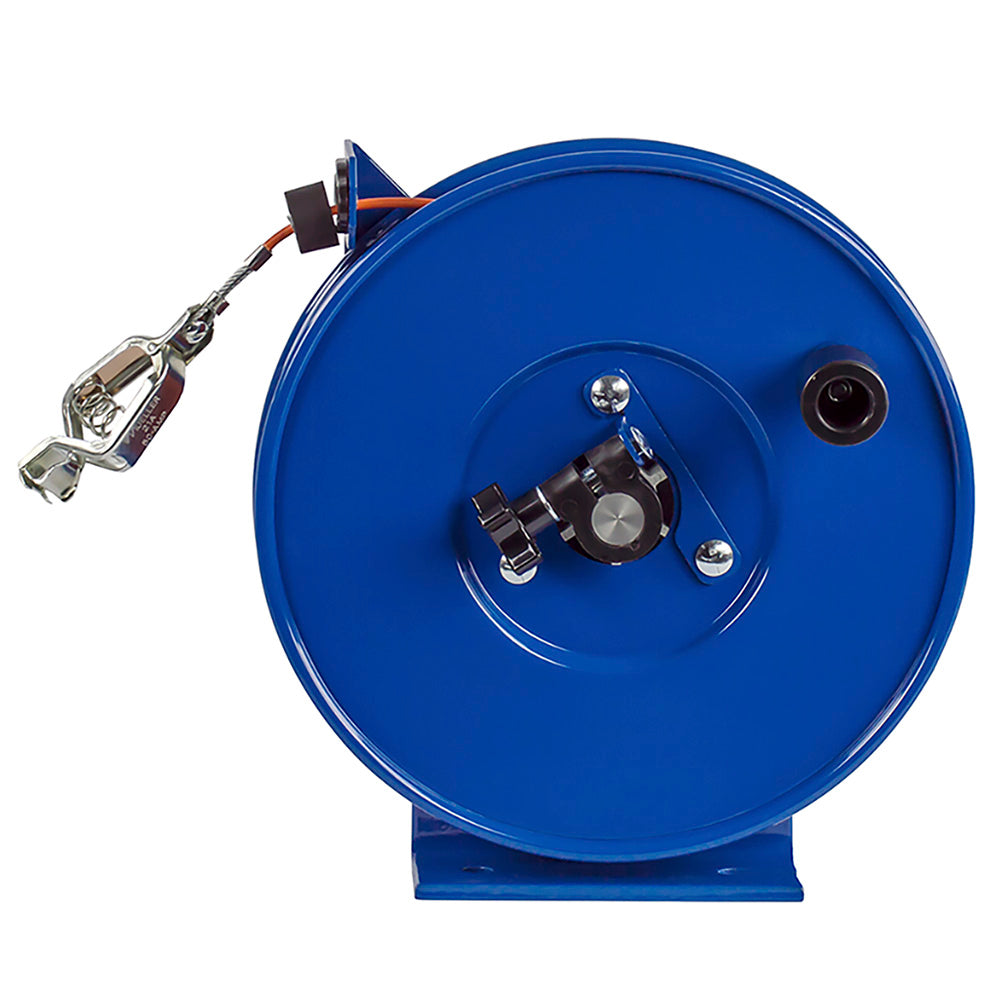

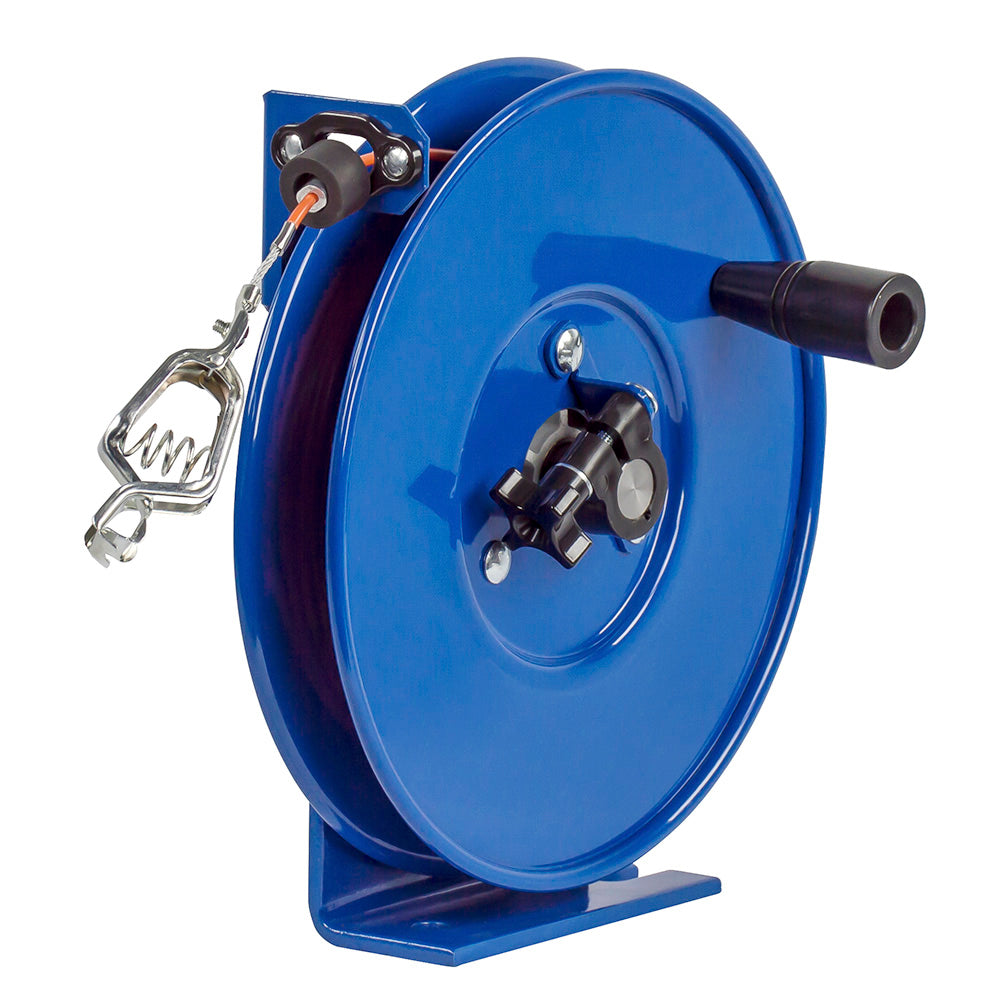

Model SDH-100-1: Spring Rewind Static Discharge Hand Crank Cable Reel: 100' cable, stainless steel
FEATURES
- Available with 7 strand x 7 wire galvanized steel or stainless steel 3/32" cable.
- High visibility orange vinyl cable cover (O.D.= 5/32" with cable cover).
- Includes cable, ball stop & 50 Amp grounding clamp (100 Amp copper grounding clamp available, consult factory).
- Compact static discharge cable reel available in spring rewind or direct hand crank retraction.
- Commonly paired with fuel reels & used in combustible environment for grounding purposes.
- Guide arm adjusts to wall, floor, vehicle & overhead positions.
- Solid one piece, heavy gauge 1/4" steel base for maximum stability.
- 1" solid steel axle & lubricated precision bearings for smooth rotation.
- Bottom of the base is not powder coated to ensure proper grounding of the reel.
- Simple design with direct hand crank action.
- RETRACTION - Compact static discharge cable reel with direct hand crank retraction.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- MULTI-POSITION GUIDE ARM - Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- STEEL CABLE - 7 strand x 7 wire galvanized steel cable. High visibility orange vinyl cable cover.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,and sturdy permanently lubricated precision bearings.
| MODEL | SDH-100-1 |
| REEL TYPE | Spring Driven |
| LENGTH | 100' |
| HOSE | Yes |
| SHIP WEIGHT (LBS) | 13 |
| OVERALL DIMENSIONS (W) (H) (L) | 5.75" (W) 11.5" (H) 11" (L) |
| MOUNTING PATTERN (M) (N) | 4" (M) -" (N) |
| BASE (X) (Y) | 2.5" (X) 6" (Y) |
