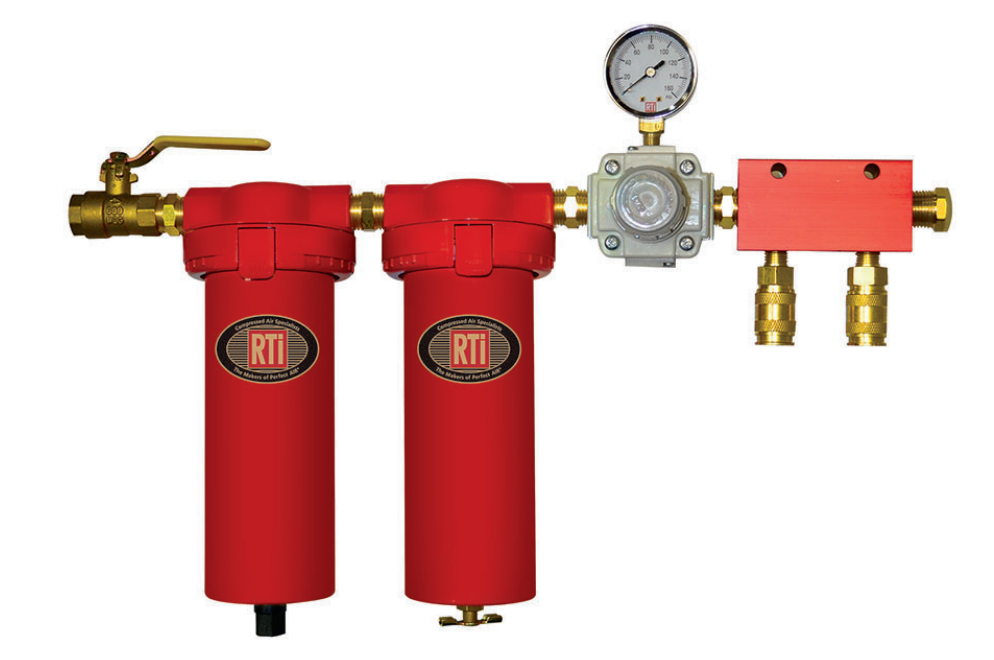

STEALTH 6062B 2-stage Filter/Coalescer Combo, 1/2" inlet, regulated 3/8" outlet with gauge, multiport manifold outlet
Benefits
- Inverse-Flow® Technology
- Water, dirt, and oil removal
- Auto drain 1st stage
- Easy serviceability (no tools needed!)
- Snap-lock ring design
- Easy spin-on/spin-off design
- Heavy duty metal construction
Applications
- Paint booths
- Lacquer spraying
- Critical air tools
- Prep stations
Specifications
- Maximum flow: 60 SCFM at 100 PSI
- Activated carbon 1st stage element removes oil to 0.003 PPM
- Two (2) ½" regulated exhaust ports
- Final filtration to 0.01 micron at 99.99998% efficiency
- Maximum pressure: 150 PSI, maximum temp: 125° F
- High flow ½" regulator/gauge, 0-160 PSI gauge
- ½" NPT inlet, ⅜" NPT outlet
- Multiport manifold, two (2) HFMC-1 couplers, and mounting brackets
- Automatic drain in 1st stage, manual petcock drain in 2nd stage
