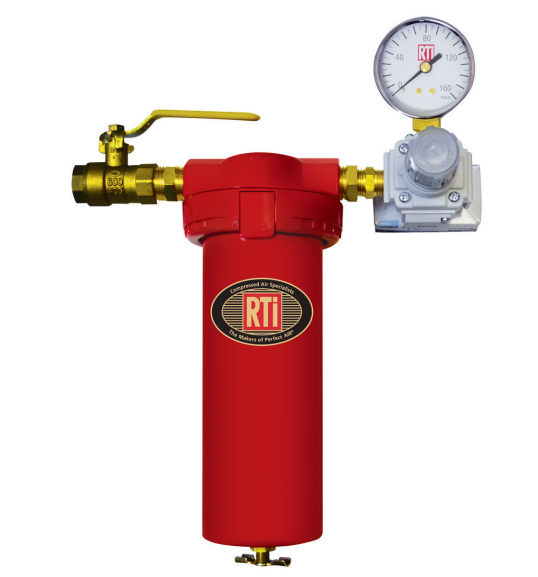

STEALTH 7030B Regulated 3/8" Outlet w/ Gauge 1/2" Inlet Coalescing Filter

STEALTH 7030B Regulated 3/8" Outlet w/ Gauge 1/2" Inlet Coalescing Filter

Regular price
$294.40
Sale price
$294.40
Quantity must be 1 or more


STEALTH 7030B Coalescing Filter, 1/2" inlet, regulated 3/8" outlet with gauge

Features & Benefits

  • Great final polishing filter and control unit
  • Quick disconnect clamp ring design
  • 0.01 micron at 99.99998% efficiency
  • Spin-on/spin-off element
  • Equipped with brass petcock manual drain
  • Comes with high flow regulator/ gauge
    ¼" On STEALTH 7000
    ⅜" On STEALTH 7030
  • 0-160 PSI gauge with glass lens
  • Cleaner compressed air with no oil to your applications
  • Simple design requires no tools for maintenance
  • Easy service of elements
  • Extremely long element life
  • 99.99998% effective at oil removal

Specifications

  • Replacement Element: 3C-060
  • Max. Air Pressure: 200 PSIG
  • Max. Operating Temp: 125° F
  • Max. Flow: 60 SCFM @ 100 PSI
  • ½" NPT inlet, / ¼" Outlet: 7000, ⅜": 7030
  • ½" Ball Valve: BV-051

Applications

  • After Filter for Refrigerated Dryer
  • After Filter for Desiccant Dryer
  • Final Paint Air Filter and Control Unit

;
