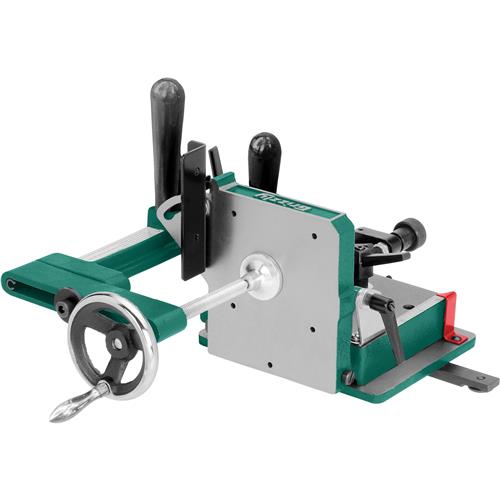

Grizzly H7583 Tenoning Jig

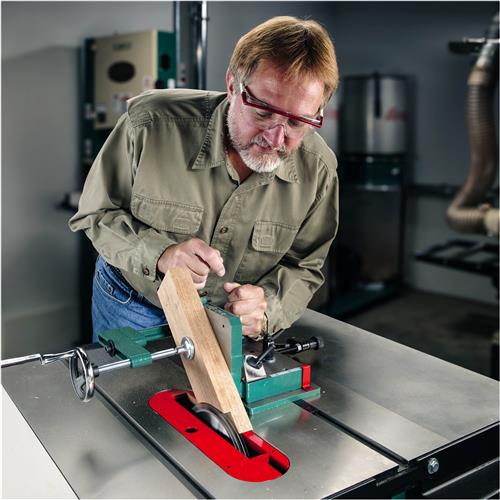

Cut perfect tenons with your table saw.

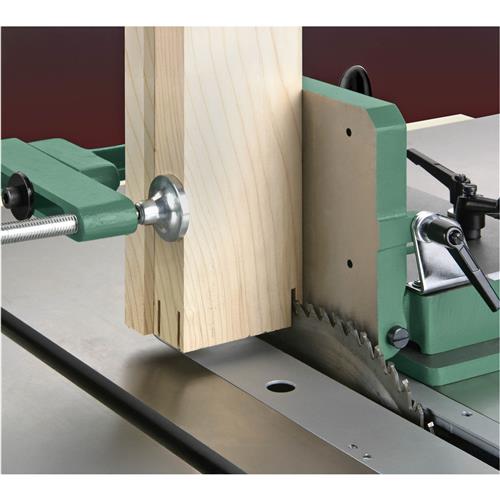

A tenoning jig makes it easy to cut tenons on a table saw, which are important in many woodworking joints, such as mortise and tenon joints.

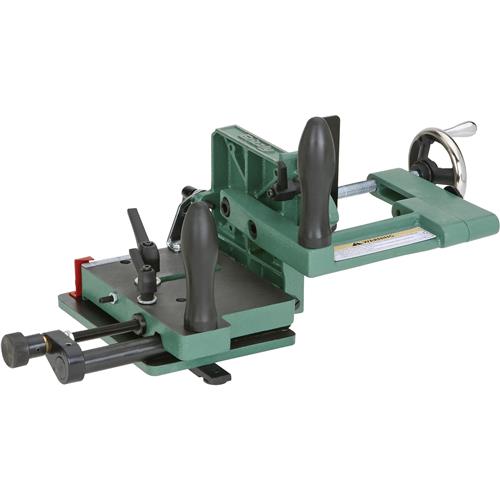

The fully adjustable H7583 Tenoning Jig fits left- and right-tilting table saws with 3/8" x 3/4", "T" shaped miter slot, while handling stock up to 3-1/4" thick.

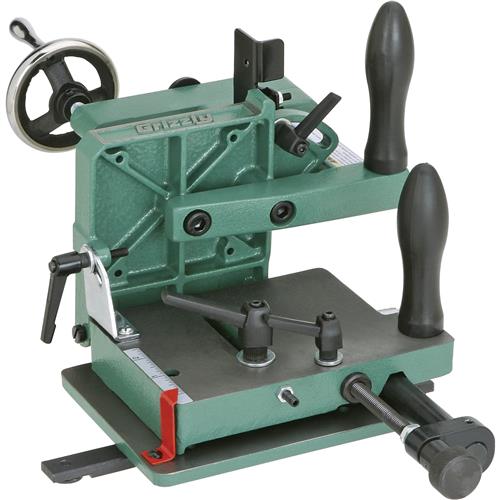

It has an adjustable guide bar to control sliding friction/precision in the miter slot and two large handles for to help ensure smooth control.
The bevel angle is adjustable from 90° to 75° and the backstop is adjustable from 90° to 45°.
The multi-position control levers and extra-large clamping handwheel also ensure accurate and repeatable results.
Additional assembly required for left-tilting saws.
SPECIFICATIONS
- Table saw miter slot: Standard 3/4"
- Minimum distance from miter slot center to blade: 3-3/4"
- Maximum distance from miter slot center to blade: 6-3/4"
FEATURES
- Fits left-tilting and right-tilting table saws with "T" shaped miter slot
- Ensures accurate and repeatable results
- Adjustable bevel angle and backstop
- 1-year limited warranty
