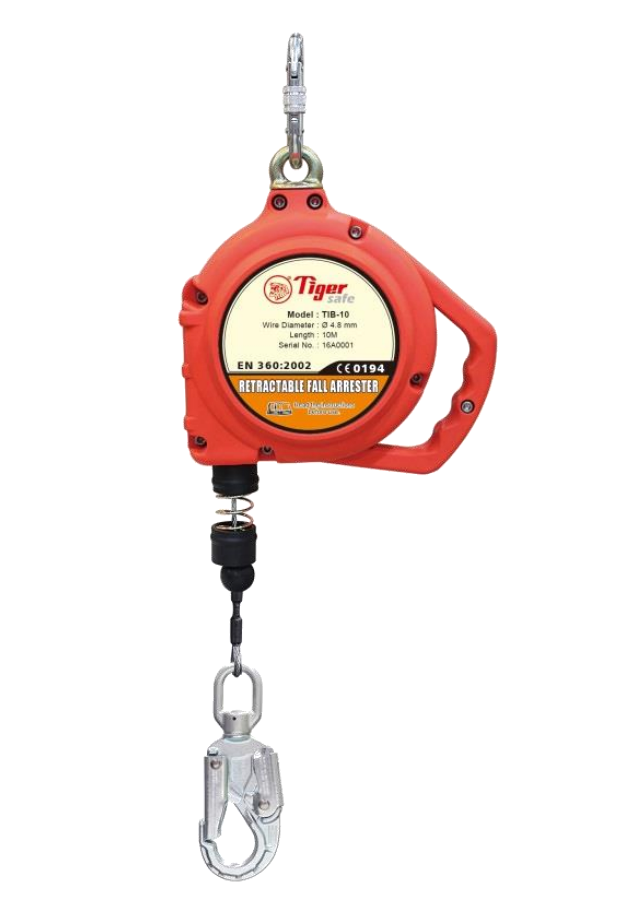

Fall Arrest Blocks – Wire Tiger TIB Fall Arrest Retractable Lifelines/Inertia Reels are designed to reduce vertical impact force on the body caused by falling from height. They are used to provide semi-permanent fall protection. The lifeline tension allows the user to move freely around the work area.
Conform to EN360:2002
All fittings meet EN 362:2002
Part of the Tigersafe range of height safety equipment.
Part of the Tigersafe range of height safety equipment
Lightweight, compact and durable
Triple pawl brake system with energy dissipating mechanism
Side cable exit for smooth operation and reduced cable wear
Ergonomic carrying handle makes transport, set-up and storage easy and safe
150kg capacity for operator and tools
Top anchor point with built-in swivel – limits lifeline twisting
Supplied with screw gate karabiner for fitting to a suitable anchor point
Top scaffold hook available as an option
Lower self-locking snap hook and swivel with built-in impact indicator for connecting directly to the safety harness
All fittings meet EN 362:2004
Available with 6m, 10m, 15m, 20m, 30m wire rope lengths
Buffer spring at cable exit protects block and allows for smooth operation
Easy to inspect
Fully serviceable by an approved Service Agent/Centre
Highly durable nylon casing*
Side case with metal bush for shaft housing
Minimum static strength 12kN
8mm galvanised wire rope
Supplied with pull down cord
Conforms to EN 360:2002 – EC Notified Body Apave
PPE Regulation (EU)2016/425
*6m wire metal case option also available – please see our separate technical information for more detail
Maximum rated load: 150kg
Minimum static strength 12kN
Braking force: less than 6kN
Wire Rope – 4.8mm galvanised
Operating Temperature: -30°C to +50°C
PPE Category III Retractable Type Fall Arrestor
Certification
Each item comes fully certified with a test certificate or an EC Declaration of Conformity. The above items are in conformity with the provisions of Council Directive 89/686/EEC and the standards indicated above.
Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.
Product Code
Length of Wire (ft.)
Net Weight (lbs)
TIB-10
33
14.3
