| COMPATIBLE MATERIAL | Cementitious Material |
|---|---|
| DISCHARGE HEIGHT (CM) | 65 |
| DISCHARGE HEIGHT (IN) | 25.5 |
| DISCHARGE HEIGHT (MM) | 648 |
| FILLING HEIGHT (CM) | 114 |
| FILLING HEIGHT (IN) | 45 |
| FILLING HEIGHT (MM) | 1143 |
| HOPPER CAPACITY (GAL) | 16 |
| HOPPER CAPACITY (L) | 60.6 |
| MAXIMUM MORTAR OUTPUT (BAGS/H) | 300 @ 150 ft³ |
| MAXIMUM PARTICLE DIAMETER (CM) | 0.7938 |
| MAXIMUM PARTICLE DIAMETER (IN) | 0.3125 |
| MAXIMUM PARTICLE DIAMETER (MM) | 7.9375 |
| OVERALL HEIGHT (CM) | 122 |
| OVERALL HEIGHT (IN) | 48 |
| OVERALL HEIGHT (MM) | 1219 |
| OVERALL LENGTH (CM) | 193 |
| OVERALL LENGTH (IN) | 76 |
| OVERALL LENGTH (MM) | 1930 |
| OVERALL WIDTH (CM) | 91 |
| OVERALL WIDTH (IN) | 36 |
| OVERALL WIDTH (MM) | 914 |
| PHASE | 1 |
| POWER RATING (HP) | 5.4 |
| VOLTAGE (V AC) | 230 |
| WEIGHT (KG) | 200 |
| WEIGHT (LB) | 441 |
| TYPE | Continuous Mixer |
| MATERIAL OUTPUT (BAGS/HR) | 300 |
| MAXIMUM INPUT AMPERAGE (A) | 30 |
| MODEL | ToughTek |
| SERIES | CM-40 |
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.

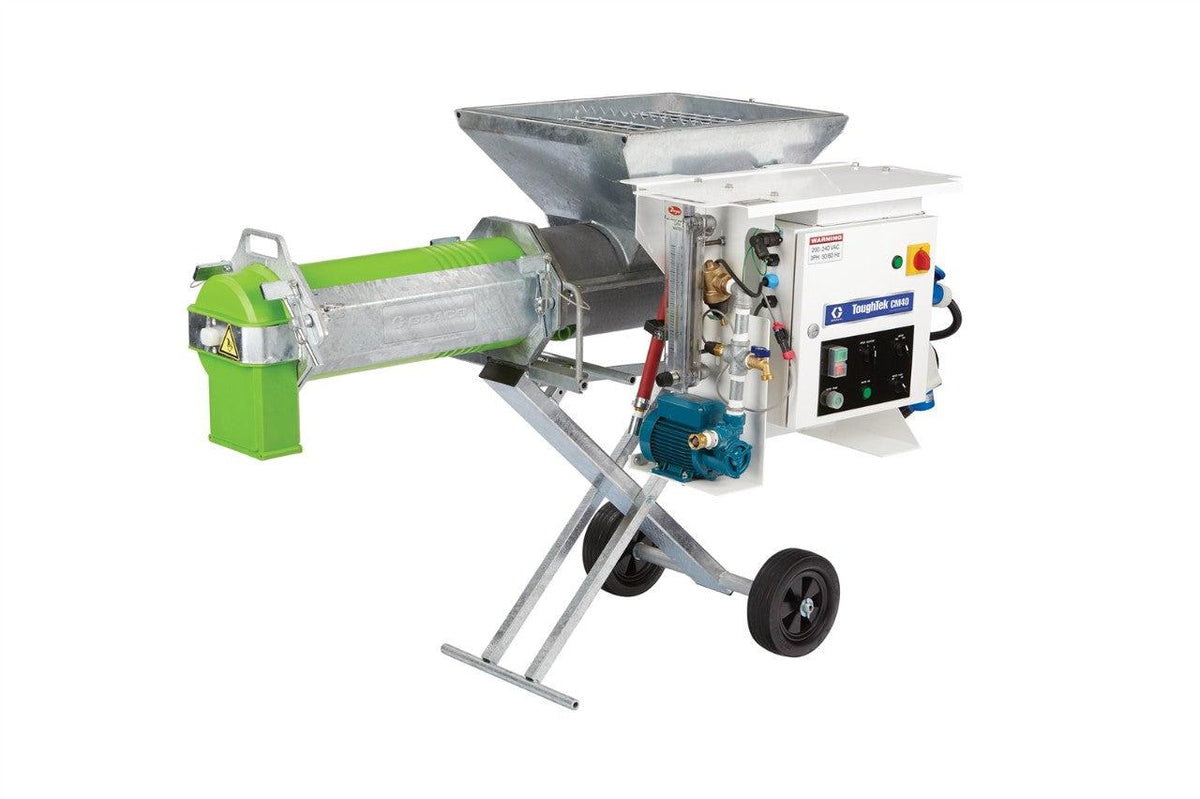

Ideal for larger projects, the ToughTek CM40 continuous mixer will improve your crew’s production rates with an output of up to 300 bags per hour of self-leveling underlayment. The CM40 also comes with a water flow meter and water booster pump so you can easily set and adjust water flow while maintaining water pressure, giving your operation consistent results continuously, day to day.
Automatic mixers for cementitious materials
Automatic mixers for cementitious materials
- Easy to operate, easy to move
- Plug and play – CM40 rated for a 230V circuit
- Variable pump output lets you adjust material flow
- Flow rate: 18 gpm (70 lpm)
- Output (underlayment): 300 bags per hour (based on 50-lb/22.6 kg bags)
- Hopper capacity: 16 Gal (60.6 L)
- Power requirements: 230V, 30A, 1-ph or 230V, 30A, 3-ph
- Easy to take apart for quick clean-up and transport
- Easy to maintain with long-wearing parts and components
