60”W x 48”D x 36”H
Split Level Model features a hinged cabinet top that lifts open onto brackets for ease of loading heavy or large parts. The counterbalance spring helps open and close the top.
- TRINCO™ BP Dust Collectors vacuum air borne dust from the cabinet during blasting, providing good visibility for the operator and preventing dust from escaping the cabinet. TRINCO™ BP Dust Collectors are ideal for low to medium blasting requirements. Click System Upgrades button for information on the TRINCO™ 400PT Dust Collector for medium to high blasting requirements
- Bright white fluorescent lighting provides excellent illumination and eliminates shadows
- Dual windows and glove sets for greater access to cabinet interior
- Large safety glass windows with easy change window frame provides excellent visibility.
- TRINCO™ Air Pressure Regulator and gauge mounted at the front of the blast cabinet allows for easy adjustment of blast pressures
- Double floor – 1/8″ thick Expanded Steel Grate on top of a fine mesh steel carbon screen. The fine mesh screen traps contaminants preventing gun blockages
- 1 Year TRINCO™ Warranty on non-consumable parts
- Greater for extra large parts
- Heavy duty 14 gauge welded steel construction
- Spring loaded hopper trap door for easy media changes
- Heavy duty blast gun with Tungsten Carbide nozzle, 25 CFM air jet, and safety enclosed foot pedal control

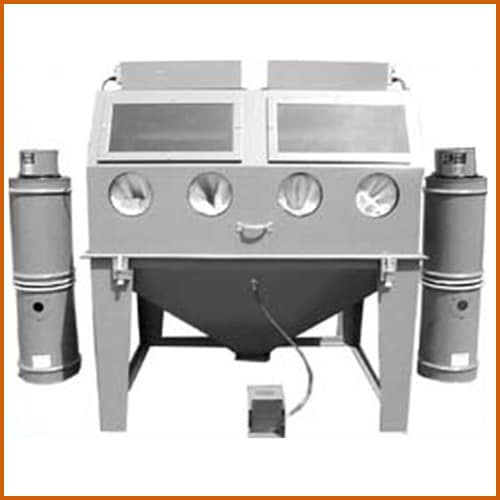

- Available with TRINCO™ BP Dust Collector (shown), TRINCO™ Abrasive Separator or TRINCO™ Deluxe line
- Also available in 60×30 cabinet size
