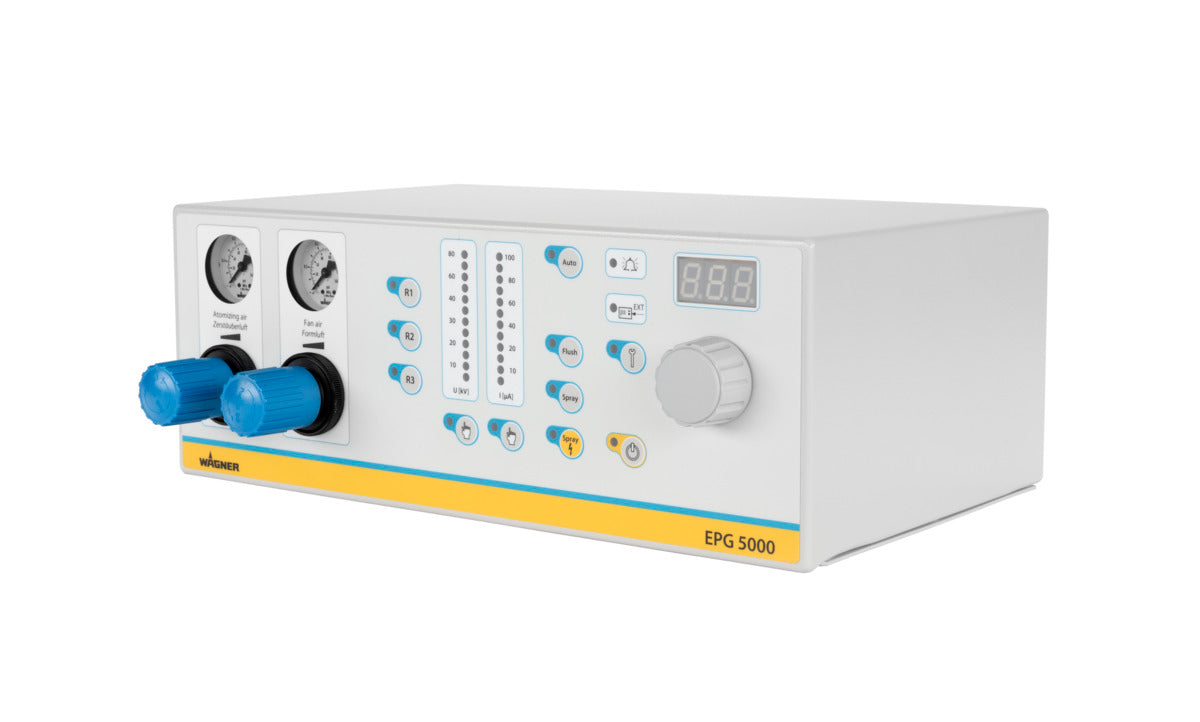

Wagner Control unit EPG 5000 — Wagner order no. 2359918, from the EPG 5000 product line.
Overview
The control unit is used to intelligently control the GA 5000 automatic electrostatic guns.
Technical data (EPG 5000)
| Dimensions 370 x 136 x 295 mm |
| Weight 6.7 kg |
| Air inlet pressure 6-8 bar |
| Protection class IP 40 |
| Gun Spray Current 100 µA |
| Gun Spray Voltage 80 kV |
| Input frequency 50-60 Hz |
| Input voltage 115-230 V |
Configured to order from Wagner. Call (888) 714-1410 for lead time, configuration help and system quotes.
