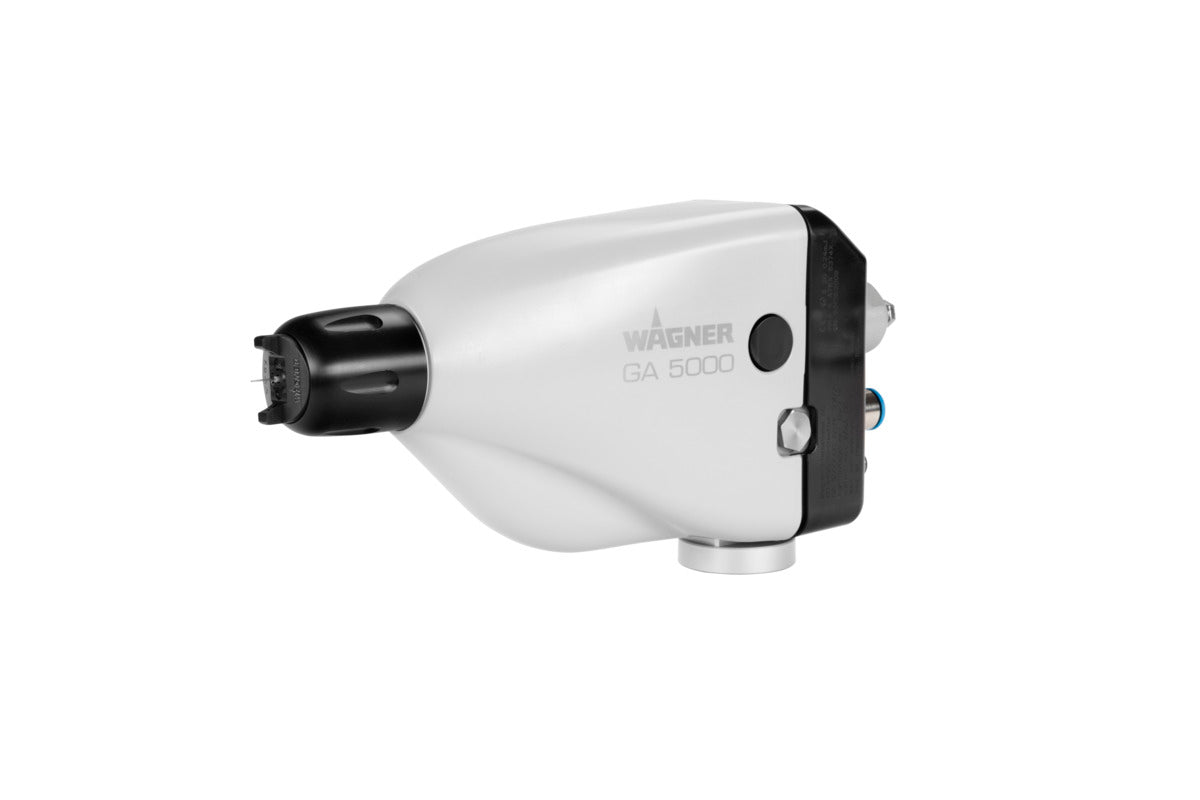

Wagner GA 5000EA EC — Wagner order no. 2360901, from the GA 5000EA product line.
Overview
The electrostatic automatic gun achieves a very high application efficiency and a high-quality surface finish.
Technical data (GA 5000EA)
| Application area Metal coating, Plastic coating, Wood coating |
| Application technique Airspray, Electrostatic solvent-based |
| Processable materials 1K solvent-based primers, 1K solvent-based paints, 2K solvent-based primers, Solvent-based paints (2K, 3K and 4K), Solvent-based separating agents |
| Material Wetted Parts Stainless steel, Carbide, PA 12 (polyamide 12), PEEK (Polyetheretherketone), POM-C (Polyacetal Copolymer) |
| Dimensions 272 x 74 x 135 mm |
| Weight 1,200 g |
| Max. Material Pressure 8 bar |
| Max. Sound Level 73 dB(A) |
| Material conductivity 18.5-123 MΩ.cm |
| Material conductivity LowR 6.2-123 MΩ.cm |
| Nozzle size 0.3-2 mm |
| Operating temperature 5-40 °C |
Configured to order from Wagner. Call (888) 714-1410 for lead time, configuration help and system quotes.
