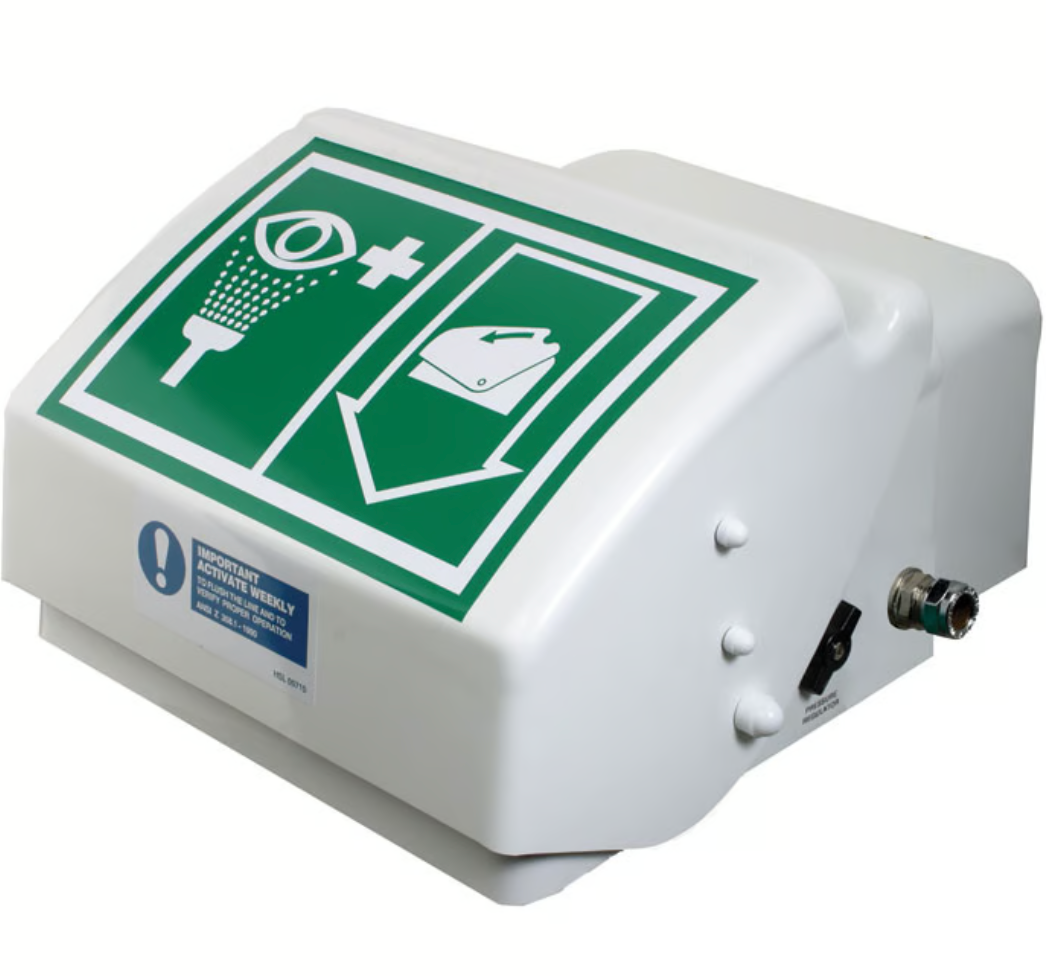

Wall Mount, Closed ABS Bowl, Hughes Eye/Face Wash

Wall Mount, Closed ABS Bowl, Hughes Eye/Face Wash

Regular price
$515.00

See Lower Price in Cart

Quantity must be 1 or more


Wall-mounted eye/face wash with high, ANSI-compliant flow rate is suitable for use in all applications not subject to the possibility of freezing or overheating. The eye/face wash incorporates an integral lid connected to the water valve for automatic operation—activate by simply pulling down the lid. Easy-to-reach flow regulator valve positioned on side of bowl adjusts to suit the severity of the accident. Includes an inspection record tag for recording service and test history.

  • Covered bowl ensures nozzles and bowl remain clean and free from contamination
  • Durable, corrosion-resistant acrylic capped ABS construction
  • Twin aerated diffusers provide a soft, scrubbing action to the eyes and face
  • Includes a separate universal eye wash sign for enhanced visibility
  • Meets ANSI Z358.1 and EN 15154 standards, supports OSHA requirements

Specifications:

Color white
UPC 805042000076
Net Weight, lbs 6.6
Net Weight, kg 3
Dimensions, Exterior 8.9" H x 13.5" W x 14.3" D
227mm H x 343mm W x 343mm D
UL Classified to ANSI Z358.1-2014 Yes
Water Inlet Size NPT 1/2 in (F)
Minimum Operating Pressure 2 bar g, 29 PSI
Maximum Operating Pressure 6 bar g, 87 PSI
Water Flow Eye/Face Liters/min 11.4
Water Flow Eye/Face US Gal/min 3
Material Specifications Eye/facewash diffusers: Chrome plated brass with stainless steel mesh.
Operating Valve Material Chrome plated brass
Eye/Face Wash Bowl Material White Acrylic-Capped ABS Plastic
Mounting Type Wall
Activation Method Pull Down on Lid
Eye/Face Wash Bowl Interior Dimensions 9.5" W x 8" D
241mm W x 203mm D
Minimum Ambient Temperature, °F 41
Minimum Ambient Temperature, °C 5
Maximum Ambient Temperature, °F 95
Maximum Ambient Temperature, °C 35

;
