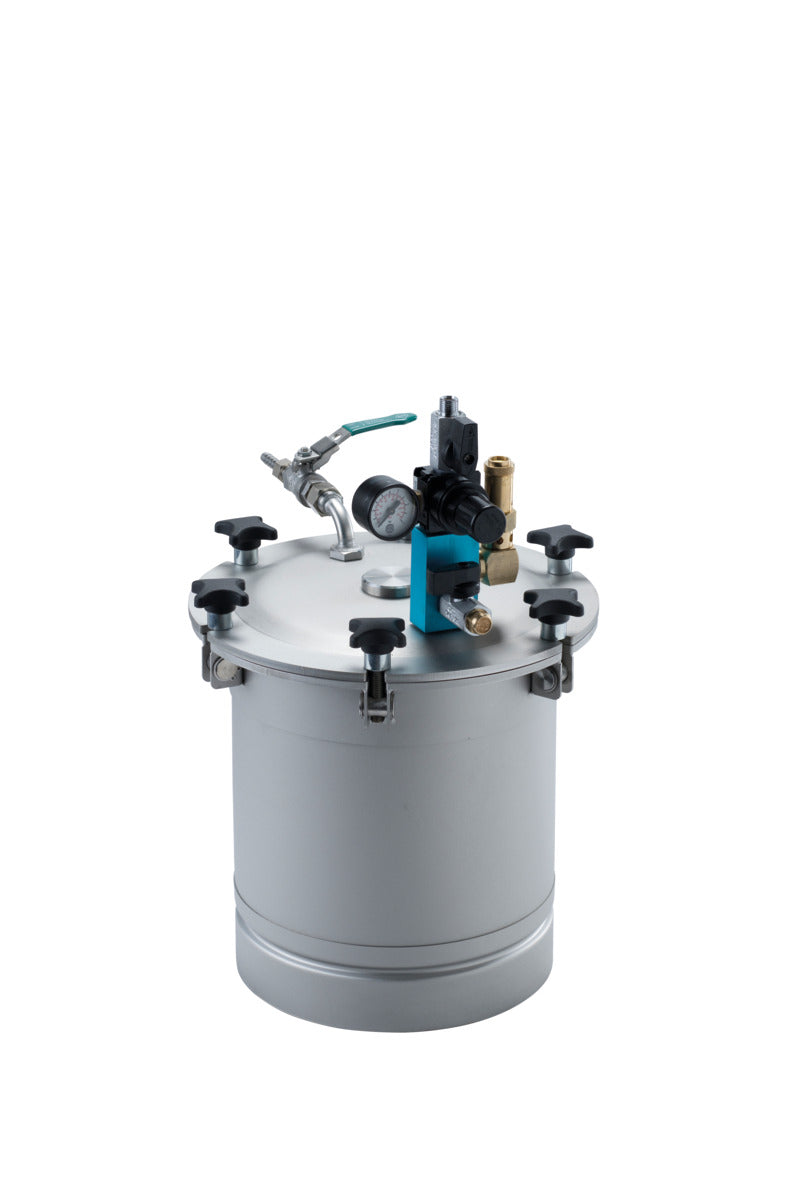

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.
Article number: V4410160113
Manufacturer designation: LDG-10 6bar HRW 1oA VA

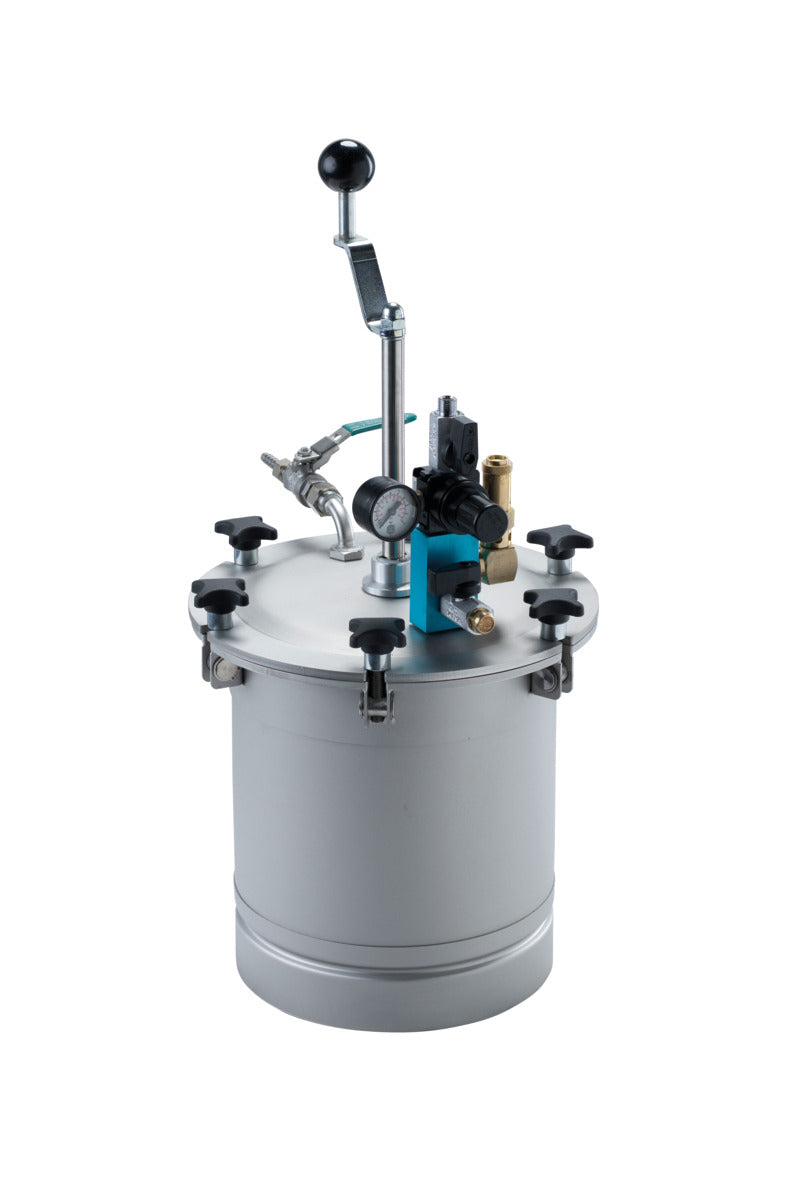

Configuration: 6 bar, Manual Agitator, 1 Upper Outlet
Technical data (LDG 10)
| Material | Stainless steel |
|---|---|
| Pressure range | 6 bar |

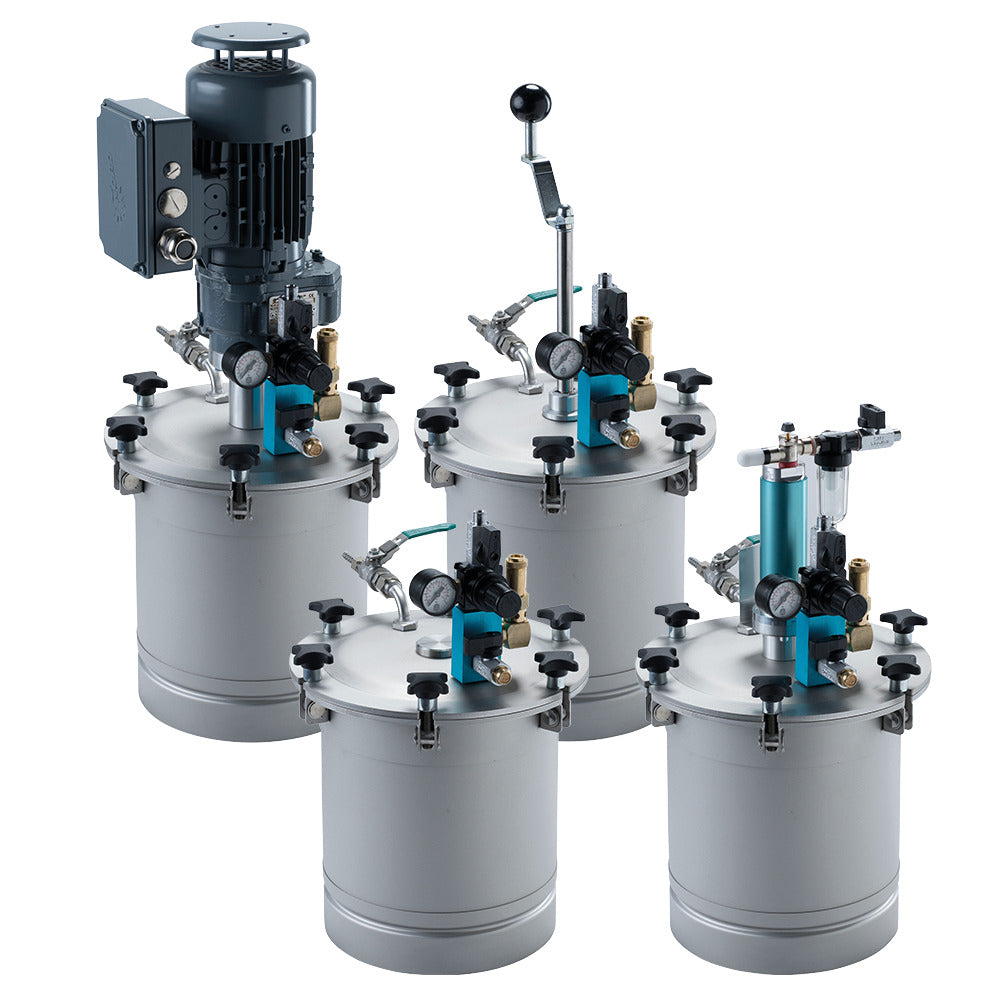

| Agitator optional | without agitator |
| manual agitator | pneumatic agitator |
| electric agitator | Outlet optional |
| 1 upper outloet | 2 upper outlets |
| 1 lower outlet | Regulator optional |
| Single regulator | +2. regulator |
| +2. and 3. regulator | Material outlet (top/bottom) |
| 1/4" / 1/2" | Capacity (filling quantity/usable capacity) |
| 11.4 liters / 9.0 liters | Diameter (inside/outside) |
| 232mm / 291mm | Total height without agitator (upper / lower outlet) |
| 445mm / 481mm | Total height with manual agitator (upper / lower outlet) |
| 592mm / 624mm | Total height with pneumatic agitator (upper / lower outlet) |
| 515mm / 547mm | Total height with electric agitator (upper / lower outlet) |
