Collection: ADA Cable Ramps & Hose Bridges

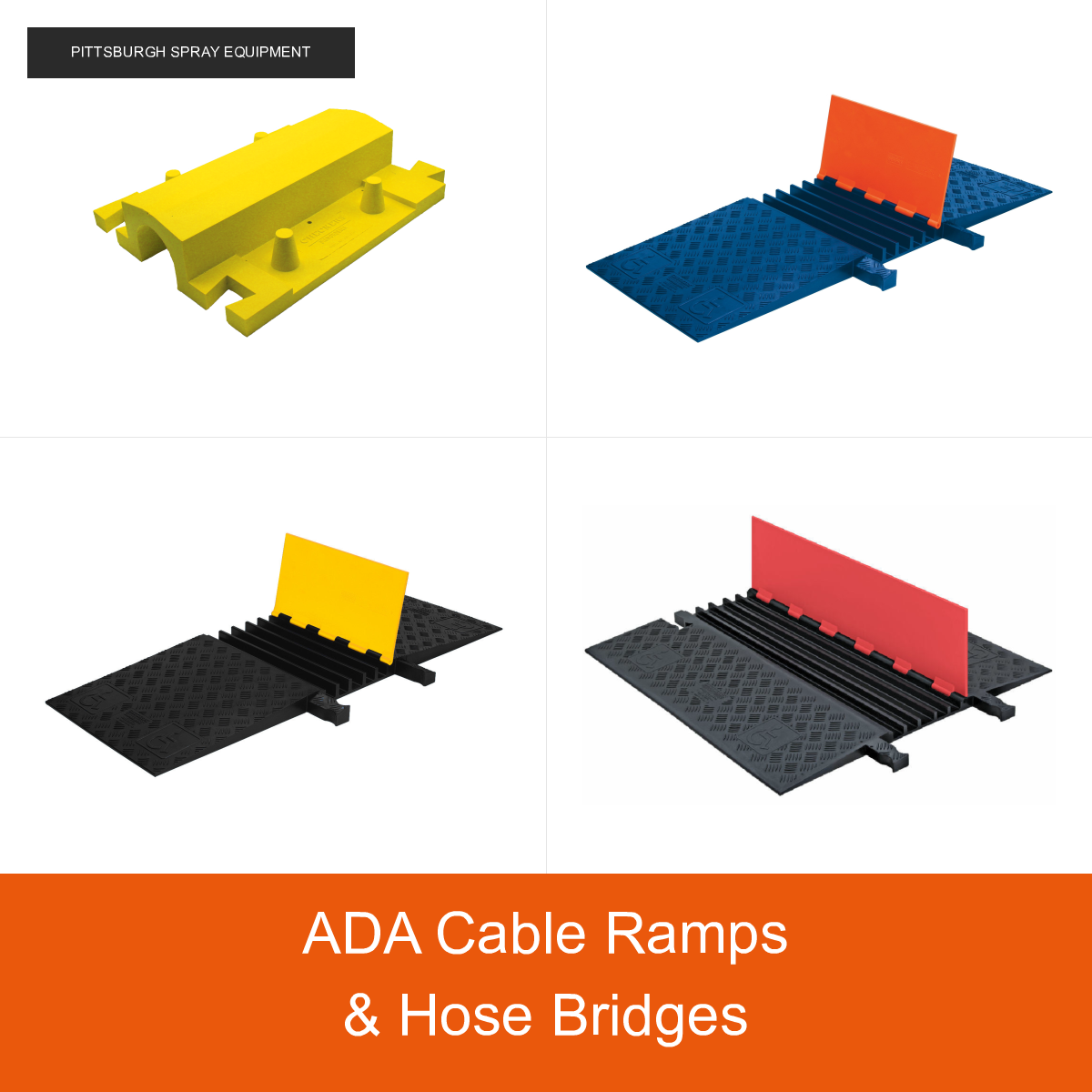

An ADA cable ramp (also called an ADA cable protector) is a low-profile cable cover with a shallow, wheelchair-accessible slope that meets ADA Standards for Accessible Design (2010) — safe for pedestrians, walkers, wheelchairs, and rolling carts to cross without a trip hazard. A hose ramp or hose bridge is the same idea sized for larger hoses instead of electrical cables. This page shows every ADA cable ramp and hose bridge PSE stocks from Checkers Safety — the low-profile Guard Dog series (1, 2, 3, and 5-channel for cables up to 0.75 in.) and the Diamondback expandable hose bridge system for hoses up to 6.5 in. Ships direct from the manufacturer. Call (888) 714-1410 or text (833) 670-5756 for event sizing or bulk pricing.

Why buy from Pittsburgh Spray Equipment

• Authorized Checkers Safety dealer — full Guard Dog and Diamondback lineup.
• ADA-compliant slopes — designed to meet 2010 ADA Standards for Accessible Design.
• Event pricing — bulk discounts for concert venues, film sets, trade shows.
• Also see: heavy-duty cable protectors (Yellow Jacket, Linebacker, Fastlane), wheel chocks, and warning whips for full site-safety packages.
• Free shipping on orders over $500, most orders ship in 1-3 business days.
• Since 1944 — 80 years supplying industrial safety equipment.

When to use ADA cable ramps vs heavy-duty cable protectors

The difference is pedestrian access. ADA cable ramps have a shallow slope for wheelchairs and walkers to cross safely. Heavy-duty cable protectors (Yellow Jacket, Linebacker) are taller for vehicle traffic and are trip hazards for pedestrians.

• Use ADA ramps when: crossing sidewalks, event floors, warehouse aisles, hospital hallways, retail store floors, trade show floors, film sets with talent walking around.
• Use heavy-duty protectors when: crossing driveways, parking lots, forklift routes, construction site vehicle paths.

Guard Dog low-profile — sizing by channels

Colors: orange with black lid (default), all black, and all yellow. All Guard Dog ADA cable ramps have a wheelchair-accessible slope on all sides.

Diamondback hose bridge — for larger hoses

The Diamondback expandable hose bridge system handles hoses up to 6.5 in. diameter — used for fire hoses, pump hoses, welding cables, and mining feed lines. Modular tunnels connect to make custom lengths. Includes 45° and 90° turns.

FAQ

What makes a cable ramp ADA-compliant?
ADA Standards for Accessible Design (2010) require a maximum running slope of 1:12 (about 4.76°) for temporary accessible routes. Low-profile cable ramps like the Guard Dog series meet this by keeping total height under 0.75 in. and having gentle-slope edges on all four sides. Heavy-duty cable protectors do NOT meet ADA and can't be used where wheelchairs, walkers, or rolling carts cross.

What size Guard Dog cable ramp do I need?
Count the cables you need to cover. 1 cable = GD1X75, 2 cables = GD2X75, 3 cables = GD3X75, 4-5 heavier cables (up to 1.25 in.) = GD5X125. If you'll run more cables later, size up now to save adding a second row.

Can I use ADA cable ramps outdoors in rain or snow?
Yes — Guard Dog and Diamondback are UV-resistant polyurethane and rated for outdoor use across temperature extremes. High-visibility colors (orange, yellow) improve safety in low light and wet weather.

What is a hose bridge and when do I need one?
A hose bridge is a cable-ramp-style tunnel sized for larger-diameter hoses instead of electrical cables — 3, 5, or 6.5 inch diameter typical. Common uses: fire department hose lines, mining slurry pumps, construction water lines, welding gas hoses across walkways.

How do I connect multiple cable ramps end-to-end?
Guard Dog and other Checkers cable protectors use interlocking dovetail joints — click one section into the next for custom-length runs. End caps, T-connectors, and 90° turns are available for corners and Ys.

Do you sell replacement lids or parts for Guard Dog cable ramps?
Yes — replacement lids, end caps, and connector accessories. Call (888) 714-1410 with the model number for the correct part.
