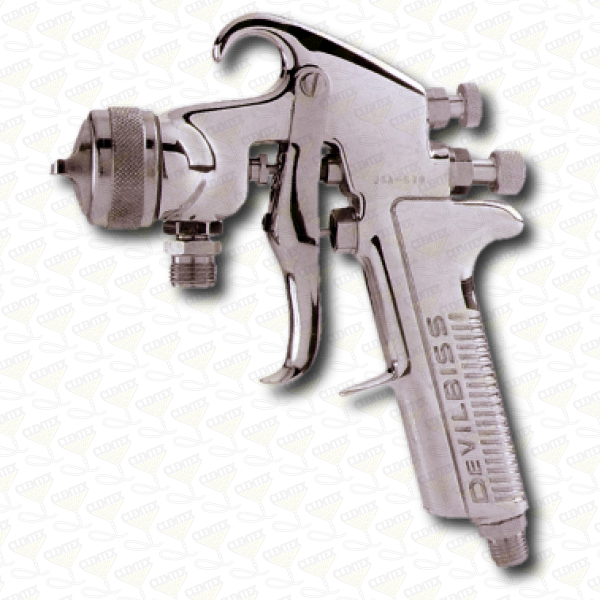

Collection: Devilbiss JGA Spray Gun and Parts

Which DeVilbiss JGA gun do I have? · Versions, model numbers & manuals

DeVilbiss has built several versions of the JGA gun. Find the model or part number on your unit's label and match it to a row below. Parts can differ between versions, so check the manual for your version before ordering.

Version	Manual date	Model / part numbers	DeVilbiss manual
JGA-510	08/2025	—	Service manual SB-2-252-R8
JGA-504	08/2025	—	Service manual SB-2-259-R3
JGA Conventional Spray Gun	08/2025	—	Service manual SB-2-393-R5
JGA Standard-Size Manual Spray Gun	—	—	Manual
JGA-510 (HVLP)	08/2025	—	Service manual SB-2-248-R4
JGA-510-98FX	08/2025	JGA-510-98FX	Service manual SB-2-187-R3
JGA-510-DEC	08/2025	—	Service manual SB-2-582-R3
JGA	2012	JGA-559AC(#)-62HD, 558, 559	Operation manual SB-E-2-251
JGA / JGV / JGHV / JGP	09/2025	—	Service instructions SI-2-25-28-R3
JGA-4035 Packing Replacement Instructions	08/2025	—	Service instructions SI-2-25-5-R3
JGA-156-K10 SPRING CLIP INSTALLATION INSTRUCTIONS	08/2025	—	Service instructions SI-2-25-32-R3

Manual date = the revision date printed on DeVilbiss's document, not the production years. Links open the PDF on binks.canto.com (Carlisle Fluid Technologies). Need help identifying your version? Call (888) 714-1410.
