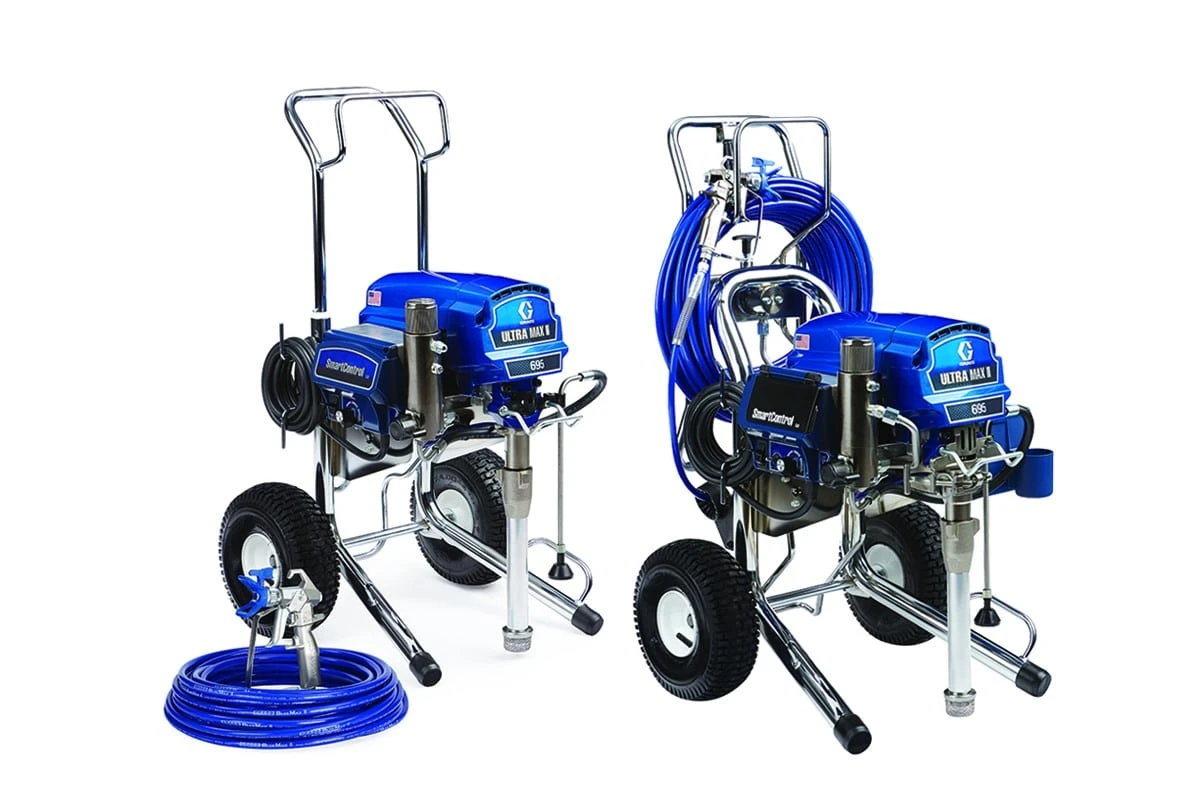

Collection: Graco Ultra Max 695 Airless Sprayer & Parts

Which Graco Ultra Max II / Ultimate Mx II 695 / 795 / 1095 do I have? · Versions, model numbers & manuals

Graco has built several versions of the Ultra Max II / Ultimate Mx II 695 / 795 / 1095. Find the model or part number on your unit's label and match it to a row below. Parts can differ between versions, so check the manual for your version before ordering.

Version Manual date Model / part numbers Graco manual
Ultra Max 795 / Ultra Max 1095 1998 232144, 232145, 232148, 232154, 232158, 232156, 232157 Service manual 308842 (rev. H)
Ultra Max 695 (B) / Ultra Max 695 / Ultra Max 795 / Ultra Max 1095 2000 245005, 245004, 245009, 245008, 245006, 245007, 245002, 245000, 245003, 245011, 245051, 246309, 245001, 245010, … Service manual 309251 (rev. E)
Ultra Max II 695 / Ultra Max II 795 / Ultra Max II 1095 2004 248042, 248041, 248046, 248045, 248043, 248047, 248044, 248048 Parts list 309951 (rev. E)
Ultra Max II 695 / Ultra Max II 795 / Ultra Max II 1095 2004 248053, 248052, 248055, 248054, 248056 Parts list 309954 (rev. E)
Ultra Max II 695 Standard / Ultra Max II 695 Premium / Ultra Max II 695 / Ultra Max II 795 Standard 2004 248037, 248036, 248031, 248030, 248042, 248041, 248046, 248045, 248049, 248058, 248057, 248593, 248592, 248053, … Service manual 309941 (rev. J)
EuroPro II 650 / Ultra Max II 695 / EuroPro II 750 / Ultra Max II 795 07/2004 248773, 248041, 248774, 248043, 248775, 248044 Parts list 310792 (rev. A)
EuroPro 680 (II) / Ultra Max II 695 ProContractor / EuroPro 880 (II) / Ultra Max II 1095 ProContractor 2014 17B394, 16Y635, 17B395, 16Y829, 17B396, 16Y864, 17B397, 16Y920 Parts list 334034 (rev. A)
Ultra Max II 695 Standard / Ultra Max II 695 Premium / Ultra Max II 795 Standard / Ultra Max II 795 Premium — 255130, 249642, 255131, 249644, 255132, 249646, 255133, 249648, 249651, 249653, 253060, 249658, 253059, 249659, … Parts list 311362 (rev. T)
695 ULTRA MAX II / 795 ULTRA MAX II / 1095 ULTRA MAX II / 1595 ULTRA MAX II — 258719, 258720, 258722, 258872, 258873, 258874, 258876, 258877, 826124, 826125, 826127, 258723, 258724, 258878, … Parts list 3A0158 (rev. H)
GMAX II 3900 Lo-Boy (Series A) / TexSpray Mark IV Pro (Series A) / GMAX II 5900 Lo-Boy (Series A) / UltraMax II and Ultimate MX II 695/795 Pro (Series A) — 16X414, 17H832, 16X419, 17H823, 17H824, 17H825, 17H826, 17H827, 17H833, 17H834, 17H835, 17H836, 17H837, 17H892 Service manual 3A6583 (rev. B)
695 / 795 / 1095 / 1595 — 16W892, 16W893, 16W894, 826177, 826178, 826179, 24R878, 16W895, 16W896, 826180, 826181, 16W899, 16W900, 16W901, … Parts list 332918 (rev. J)
GMax II 3900 Sprayer, Rental Pro 360G (Series A) / GMax II 5900 Sprayer, UltraMax II 1095/1595 with ProConnect (Series A) / GMax II 5900HD Sprayer (Series A) / GMax II 7900 Sprayer, UltraMax II 1895 (Series A) — 287512, 287513, 287579, 249122, 287928, 287929, 289590, 24B322, 24M416 Service manual 310894 (rev. S)
695 Standard (B) / 695 Premium (B) / 795 Standard / 795 Premium — 826048, 826041, 826049, 826042, 826050, 826044, 826054, 826053 Parts list 309945 (rev. M)
Ultra Max II 695 Standard (B) / Ultra Max II 695 Standard / Ultra Max II 695 Premium (B) / Ultra Max II 695 Premium — 248037, 248036, 248031, 248030, 248308, 248038, 248033, 248032, 248039, 248034, 248747, 248040, 248746, 248035 Parts list 309943 (rev. K)
695 XT / 795 XT / Mark V XT / Ultimate 695 XT — 20B963, 19F728, 19F545, 19F732, 19F710, 19F740, 19F550, 826295, 826298, 19F549, 19F546, 826300 Operation manual X011699 (rev. E)
UltraMax II and Ultimate MX II 695/795 Displacement Pump Repair — 248204, 255968, 248205, 249059, 249057, 277069, 277070, 253056, 257146 Service manual 310643 (rev. W)
UltraMax II/Ultimate MX II/GMAX II/TexSpray Displacement Pump Repair — 16X414, 16X418, 16X419, 16X420, 16X421, 16Y602, 16X426, 16X427, 16Y599, 17N693, 17R044, 17N694, 17R042 Service manual 332922 (rev. E)
Other Graco manuals for these models — — Manual 309931 (rev. B)
Manual 309933 (rev. E)
Manual 311401 (rev. A)
Manual 311404 (rev. A)
Manual 311414 (rev. C)
Manual 311399 (rev. B)
Manual 311403 (rev. C)
Manual 311402 (rev. B)
Manual 311433 (rev. B)
Manual 311407 (rev. C)
Service manual 311413 (rev. B)
Operation manual 3A6342 (rev. H)
Operation manual 3W9257 (rev. B)
Operation manual 3Y9257 (rev. B)
Operation manual 309257 (rev. C)
Operation manual 3Z9257 (rev. B)
Parts list 311363 (rev. N)
Operation manual 332916 (rev. F)
Service manual 313558 (rev. D)
Parts list 333281F
Service manual 3A6584 (rev. A)

Manual date = the revision date printed on Graco's document, not the production years. Links open the PDF on graco.com. Need help identifying your version? Call (888) 714-1410.

The Graco Ultra Max 695 is a heavy-duty airless sprayer engineered for professional contractors and industrial applicators who demand consistent output across large-scale jobs. Whether you're coating warehouses, applying protective finishes, or running high-volume production schedules, the 695 graco paint sprayer delivers reliable pressure and flow for latex, acrylics, and industrial coatings. This collection provides both the complete Graco 695 airless sprayer units and the replacement parts—pump assemblies, pressure transducers, valve kits, and hose assemblies—that keep your equipment running without costly downtime. Contractors choose the 695 for its proven durability since the Graco Ultimate MX II platform launched, and this parts catalog ensures you can source OEM components quickly when maintenance or repairs are needed.

How to Choose the Right Graco Ultra Max 695 Airless Sprayer & Parts

  • Verify PSI rating matches your coating viscosity and substrate requirements for optimal atomization.
  • Confirm pump displacement (cc/rev) determines flow rate capacity for your project timeline.
  • Check hose diameter and length compatibility with your spray gun and tip configuration.
  • Ensure replacement parts list aligns with your specific 695 model year or Ultimate MX II variant.
  • Review pressure transducer specifications if monitoring or automation features are required.
  • Confirm motor voltage (single-phase vs. three-phase) matches your job-site electrical infrastructure.
  • Verify OEM part numbers on valve kits and packing seals to avoid compatibility failures.

Model Comparison

Part Name Graco Part Number Primary Function Compatibility
Pump Packing Repair Kit 18B260 Seal and bearing renewal for pump assembly Graco 695 pump maintenance
Suction Hose Kit 246386 Intake line from paint container to pump inlet 390/395/490/595/695 models
Prime/Drain Valve Kit 235014 Expedites priming cycle and fluid purging Ultra Max 695 series
Pressure Transducer 243222 Real-time PSI monitoring and pressure readout Graco 695 airless sprayers
RAC 5 SwitchTips Standard Quick-change spray tip heads for pattern adjustment Universal Graco tip systems

Frequently Asked Questions

What is the difference between Graco 695 and Ultimate MX II 695?

The Ultimate MX II 695 is the current-generation platform featuring improved pressure stability, faster priming cycles via the prime/drain valve system, and enhanced transducer integration. Both share the same pump displacement and PSI range, but MX II units have updated electronics and serviceability. Check your manual's model designation to order compatible parts.

How often should I replace the pump packing and O-rings on a 695?

Manufacturer guidance recommends packing inspection every 500–750 operating hours or annually, whichever comes first. Signs of wear include pressure fluctuation, fluid seepage around the pump rod, or reduced output. The 18B260 packing kit and 117559 O-ring sets are preventive maintenance items; early replacement avoids pump failure and downtime.

Can I use Graco 695 parts on older model sprayers like the 490 or 595?

Partial compatibility exists for shared components (e.g., the 246386 suction hose kit fits 390/395/490/595/695 models), but pump assemblies, valve kits, and transducers are model-specific. Always cross-reference your sprayer's serial number and manual before ordering. Using mismatched parts risks pressure loss or seal failure.

What causes pressure drop on a Graco 695 airless sprayer, and how do I diagnose it?

Pressure loss typically stems from worn pump packing (seal leakage), failed pressure transducer calibration, or blocked suction lines. Check hose connections for leaks first, then inspect the pump rod for fluid weeping. If the transducer shows fluctuating readings, it may need replacement (part 243222). Worn packing requires the 18B260 kit and pump disassembly.

Do I need to replace the entire sprayer if the prime/drain valve fails?

No. The prime/drain valve is a serviceable component; Graco 695 models use the 235014 and 239914 valve kits as bolt-on replacements. Failure symptoms include slow priming, stuck plungers, or inability to purge paint. These kits typically cost a fraction of pump replacement and restore full function within 30 minutes.
